Show Settings

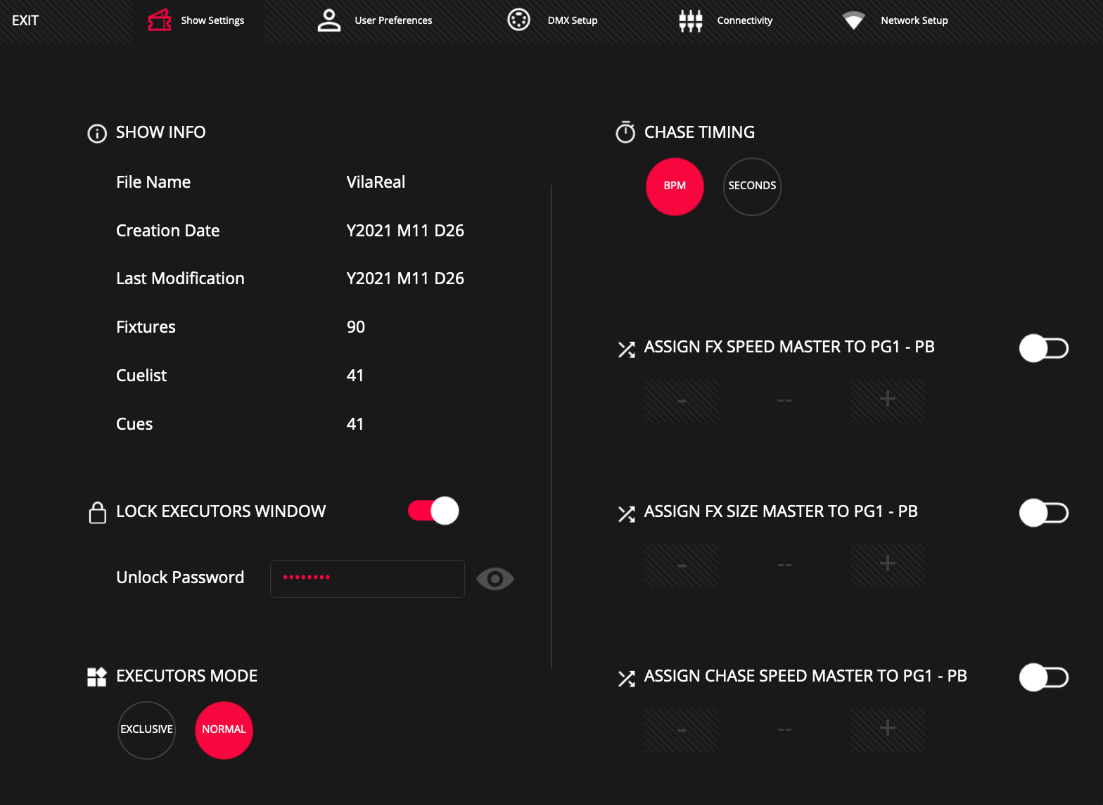

SHOW SETTINGS

From this window it is possible to configure the following options:

• SHOW INFO: It is possible to visualize the properties of the show file:


  -Date of creation of the show file.


  -Date of the last modification made.


  -Number of Fixtures contained in the show.


  -Quantity of Cuelist that there is inside the show.


  -Quantity of Cues recorded.


• LOCK EXECUTORS WINDOWS: Used to activate or deactivate the lock mode of the executors window.


• CHASE TIMMING: It allows to visualize the times of the Playbacks configured as Chase in Seconds or in BPMs.


• ASSIGN FX SPEED MASTER: Allows you to assign the effect speed master to a physical fader of the LS-1 or a Wing.


• ASSIGN FX SIZE MASTER: Allows you to assign the effect size master to a physical fader of the LS-1 or a Wing.


• ASSIGN CHASE SPEED MASTER: Allows you to assign the CHase speed master to a physical fader of the LS-1 or a Wing.


USER PREFERENCES

From this window it is possible to configure the following options:

• STARTUP: It is possible to decide whether at the beginning of lightShark the last used show will be loaded, or a new show will always be started.


• CLEAR MODE: It is possible to change the behavior of "CLEAR" from the main menu with a choice of 2 modes:


  SINGLE: One press clears the selection and the programmer.


  DOUBLE: First press clears the selection, second press clears the programmer.


• CHANEL RETURN TO DEFAULT: When this option is activated, the channels that are not being used in the programmed or in some Playback or Executor return to the default values defined in the fixture library.


• ENCODER VALUES DISPLAY MODE: It is possible to configure the type of values
  displayed.


• DBO MODE: It allows to change the behaviour of the DBO button, choosing between push-button or toggle.


• TIME ANND DATE: Allows you to set the date and time of the system.


LightShark allows the blocking through password, of the window of executors, this way the user can block a show so that when connecting a new user can only have access to the executors. This function can be very interesting in those fixed installations or places where there is not a technician constantly.

To activate this function the steps are as follows:

1. Open the LightShark main menu.


2. In the SHOW SETTINGS window, activate the option "LOCK EXECUTORS WINDOW".


3.  Enter a login password.


4. Reload the web page. Each time a device connects it will be redirected to the executors window.


5. To exit the lock mode, click on the padlock icon at the top left. Then enter the password you have previously set.
