Advanced FX Window

The advanced effects window can be accessed as follows:

Select one or several groups on which you want to apply the effect.
On the right side, select the "FX" tab.
Select the "ADVANCED" tab.
Press the "FX EDITOR" button.

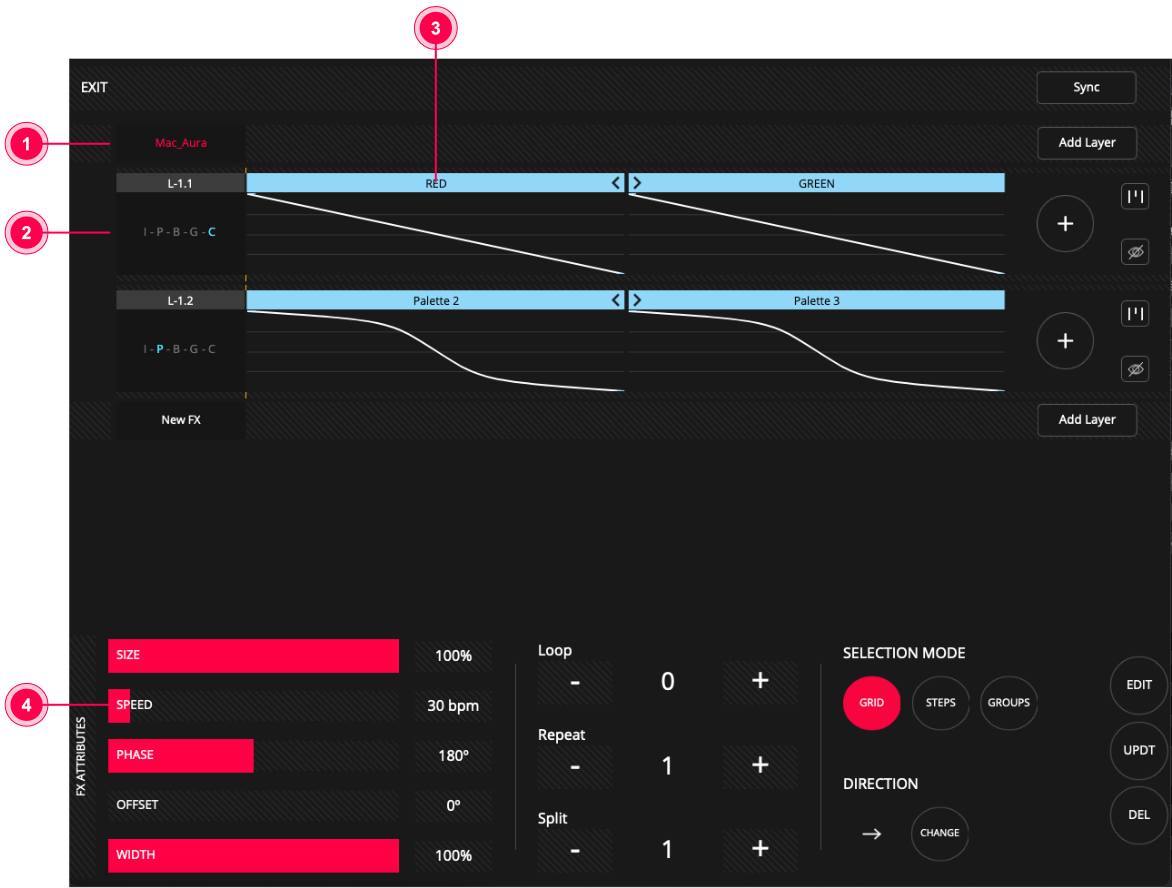

The effect window is divided into different sections, each with its own functionality.

The Effects group, applies 1 or several effects to a current selection of fixtures or groups. Each of the applied effects is represented as a layer.
Effect Layers, effects are represented by layers, it is possible to stack up to 20 different effects. These can be used in a single Effect Group or spread over several Effect Groups. Effect layers are composed of steps.

All layers within the same Effect Group will have the same values for Size, Speed, Phase, Offset, Width, Loops, Reapeat, Split, Selection Mode and Direction. Loops, Reapeat, Split, Selection Mode and Direction.
Steps, allow you to create custom effect sequences of up to 6 steps. These steps make use of palette values.
Parameter area, in this area the parameters of the selected Effect Group, Effect Layer or Step are displayed.

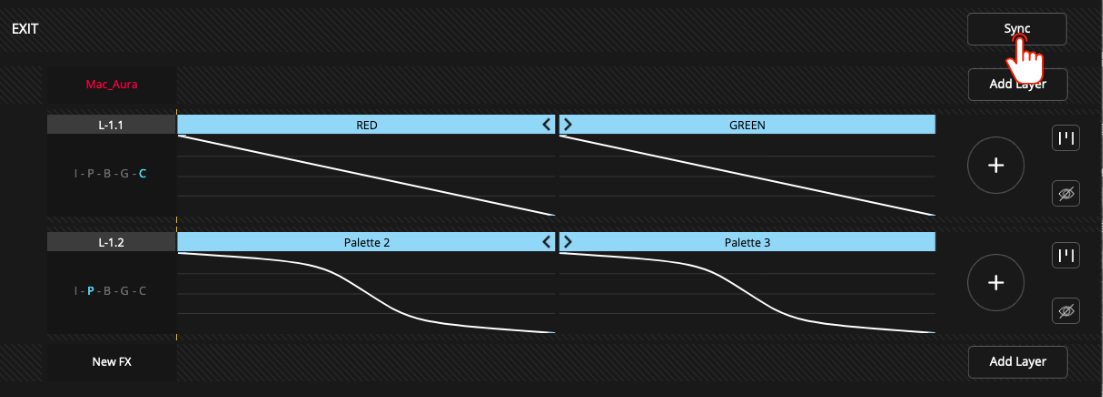

When adding effects at different times, the different effect layers may sometimes appear to be out of sync with each other. You can resynchronize the effect by pressing the "SYNC" button.
