Setting the parameters of a step

It is possible to adjust the parameters of each Step as follows:

1. Select the Step to be adjusted.

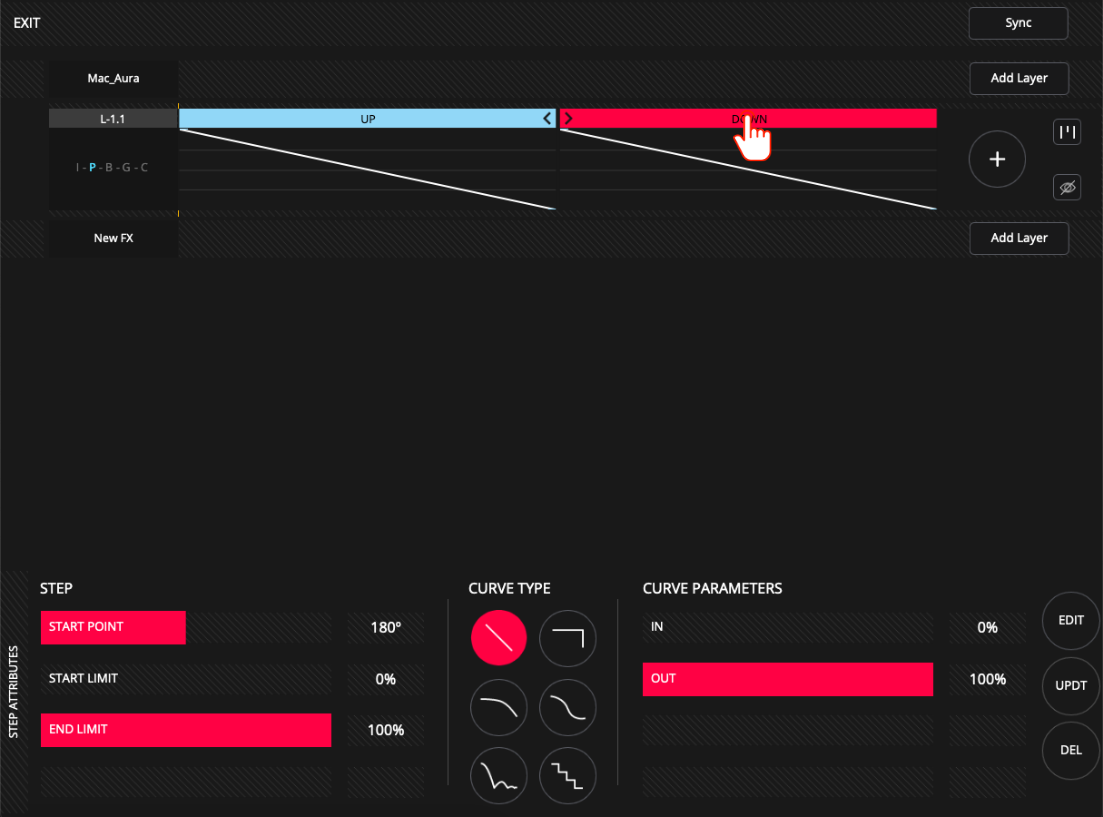

2. In the bottom part of the screen, the adjustment parameters of the selected Step will be displayed.


   • Start Point, allows you to adjust the start point of the selected Step and thus synchronize different Steps of different layers. It is also possible to adjust this value from the handles in the Step header.


   • Start/End Limit, allows you to set a margin to the value programmed in the palette. If for example the value of step 1 is 100% you can set it to 80%.

     The default value of the start limit is 0% and that means that the value is the same as the one stored in the palette.

     The default value of the end limit is 100% and that means that the value is the same as the one stored in the palette.


   • Curve Type, allows you to adjust the type of transition between each of the steps. It is possible to choose between 6 different curves.

     Depending on the type of curve selected in the Curve Parameters area, different types of settings will be displayed.
