Adding Steps on a layer

Two to six steps can be added to each effect layer as follows:

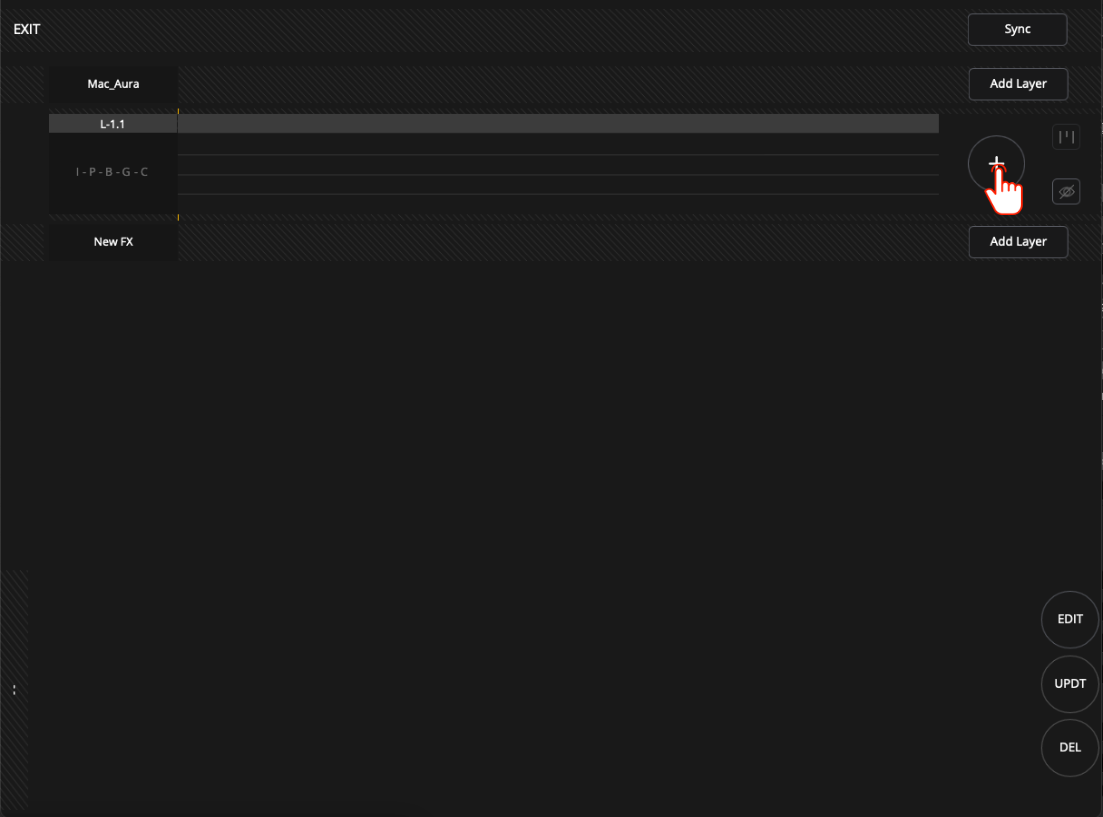

Click on the "+" button to add a step to the effect layer.

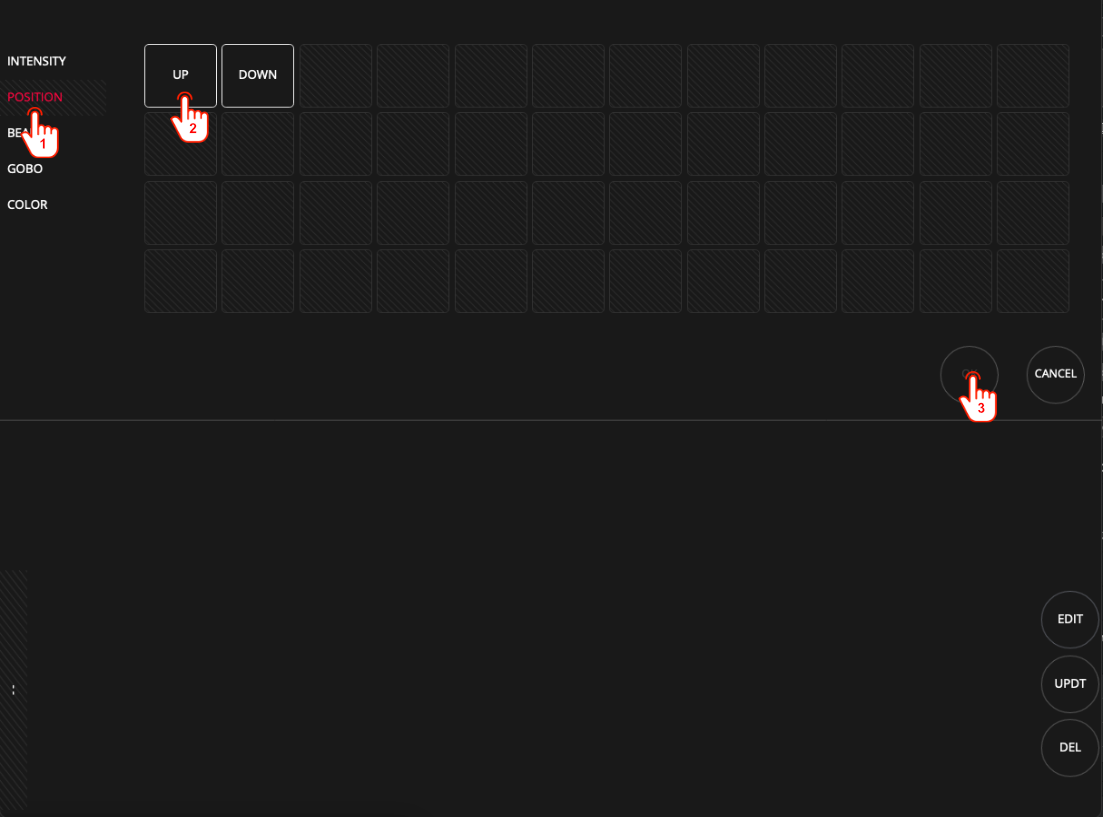

Select the type of effect you want to create by selecting the parameter type and then one of the palettes. Press OK to confirm.

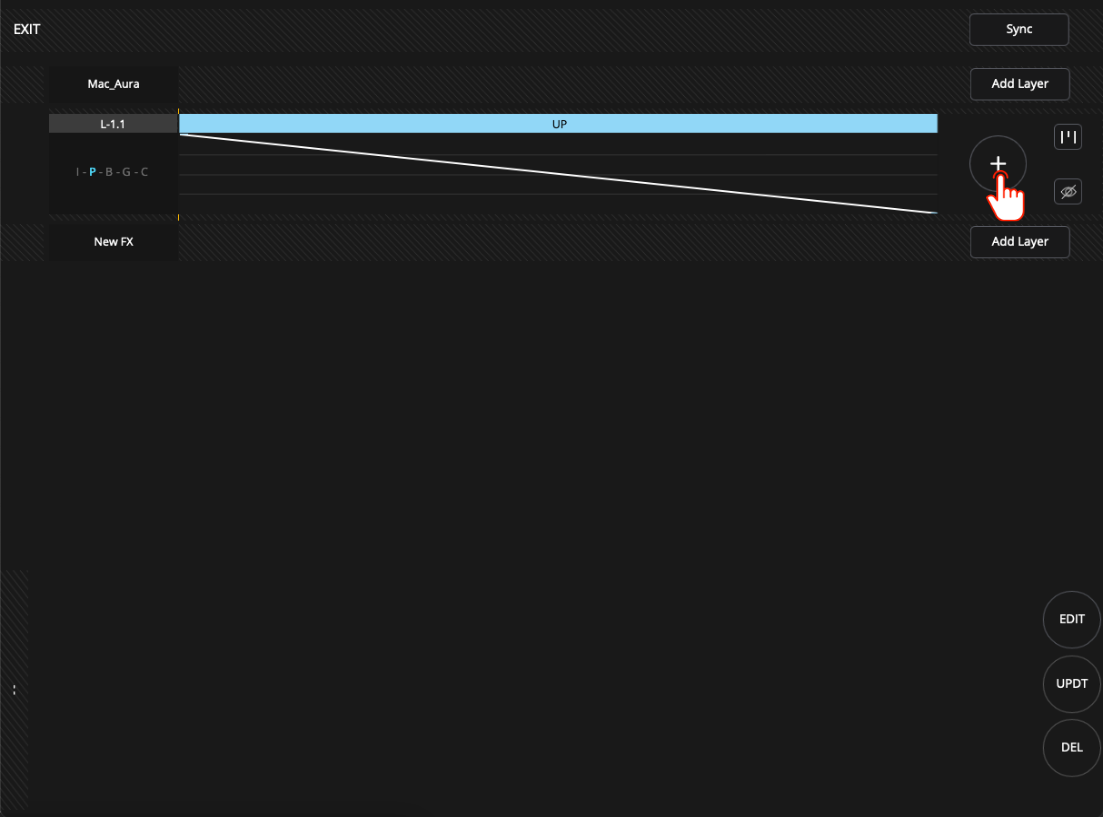

Click again on the "+" button to add a second step to the effect layer.

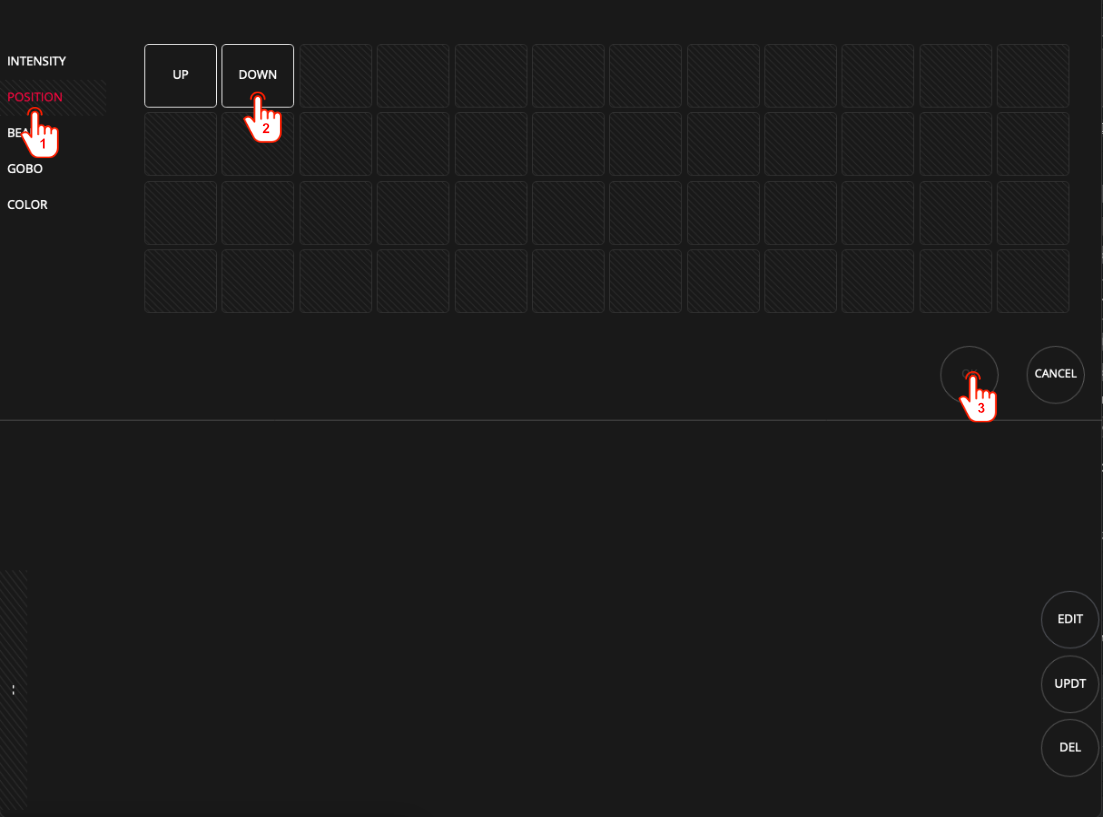

Select a different palette and press OK to confirm.

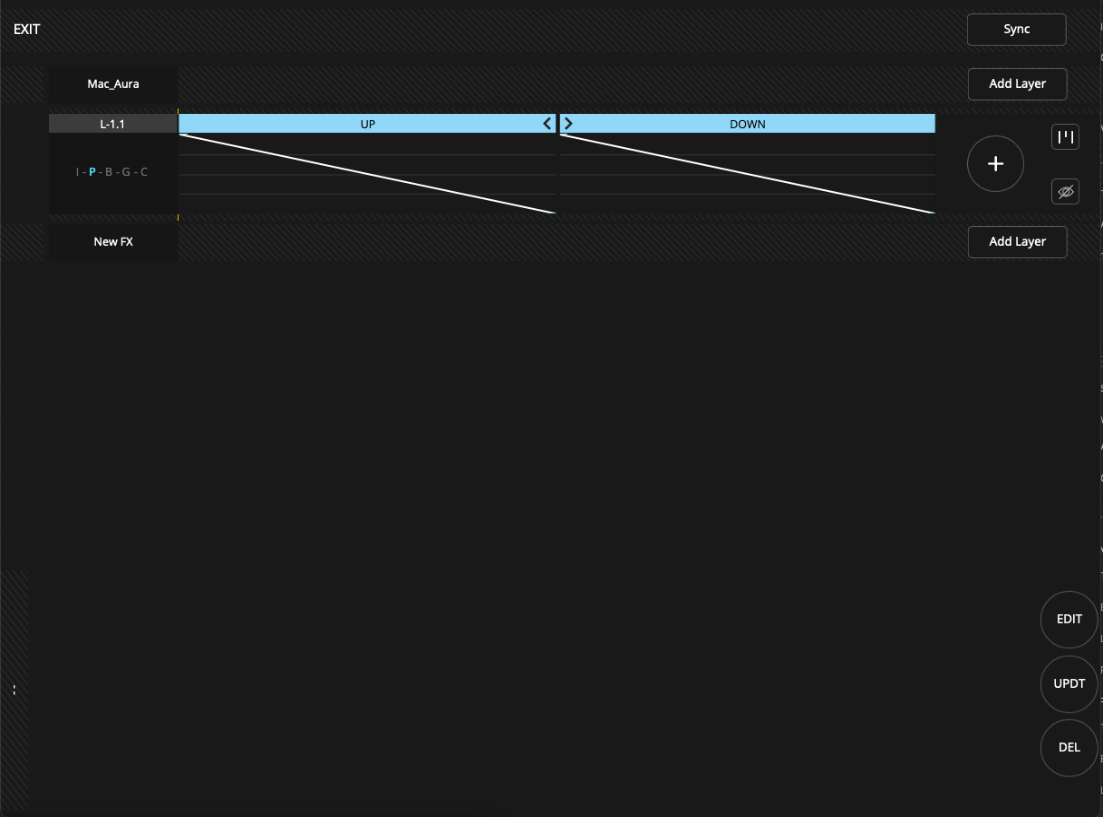

Once the second step is added, the effect will start to run.

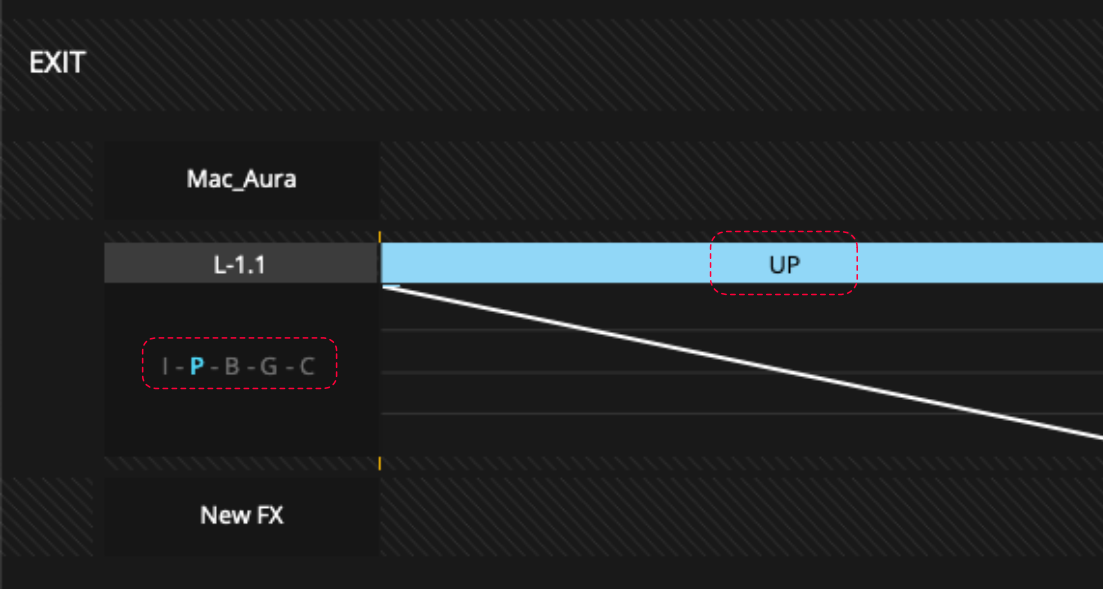

It is possible to visualize what type of effect is being applied on each of the Effect Layers. The name of the palette used is indicated at the top of the steps.
