Virtual Playbacks

VIRTUAL PLAYBACK

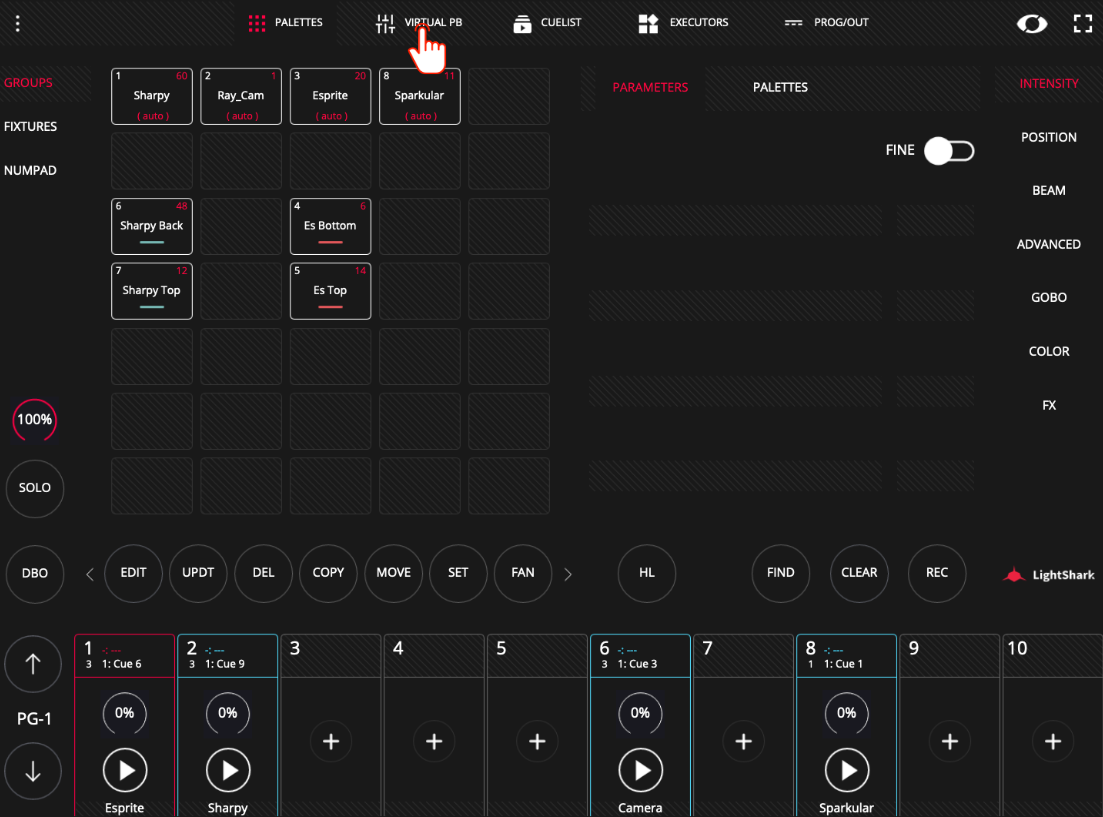

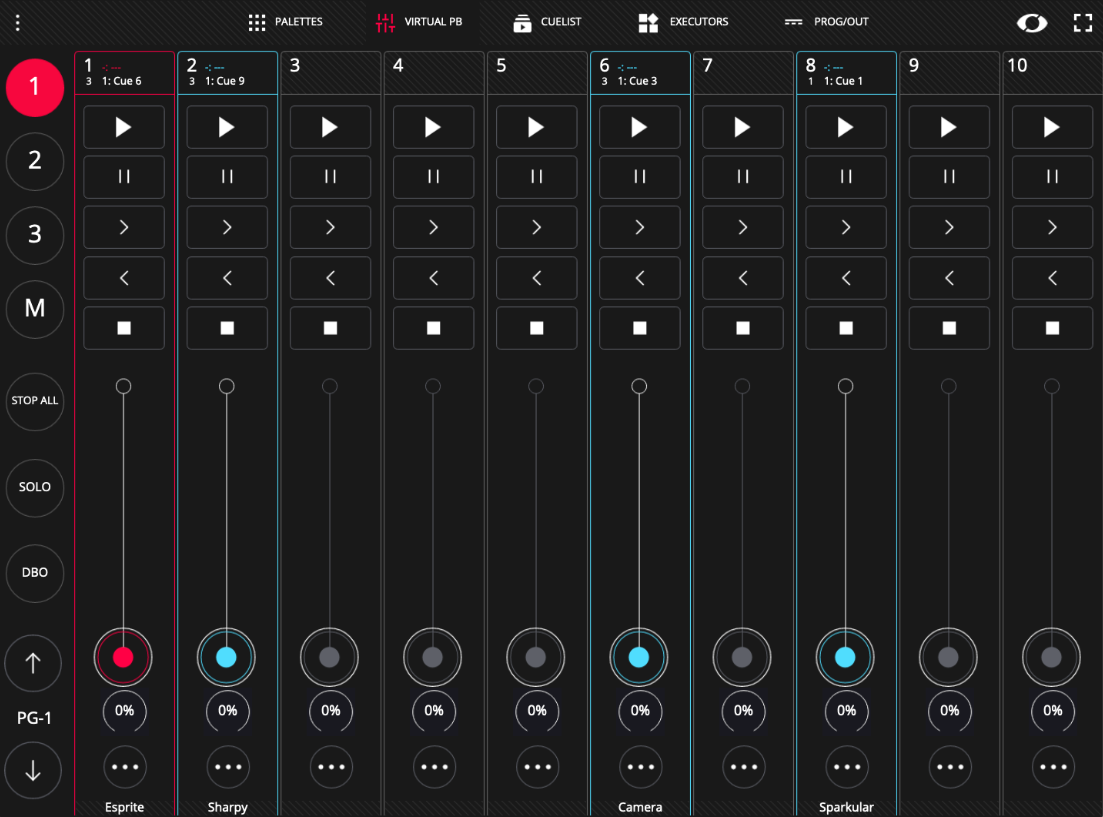

From the "Virtual PlayBacks" view you can have access to the Playbacks, it is very useful when using a LS-Core or when no physical control surface is available.

LightShark's interface is multi-touch, so you can operate multiple Playbacks simultaneously from one tablet or any device with this technology. From the buttons the user can directly access the desired Wing without scrolling.

Playbacks can have 3 states:

EMPTY: When no Cuelist is assigned they are shown in grey. It is the default state, when starting a show from 0 all Playbacks are empty.
USED: When a Cuelist is assigned it is shown in Blue.
SELECTED: When selected, it is shown in Red.

The pages allow the user to predefine some presets of Cuelist through the playbacks, so they can be loaded quickly at any time.

LighShark supports up to 30 Playback pages, allowing physical and virtual faders to have different functions and behaviors depending on which page they are on. As a general rule, one page per song is used.

With the UP and DOWN buttons you can navigate between the pages. Between the two buttons is the label indicating the current page.
