Executors

The executor window is composed by an 8x6 button matrix. Each of the 8 vertical columns can play 1 single Cuelist at the same time, so selecting a Cuelist from the same column deselects the previous one.

It is possible to configure the behavior of the executor window so that only one executor can be executed at a time.

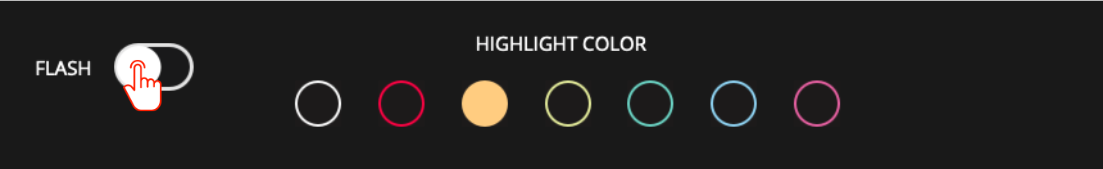

The user can modify the color of each of the buttons in the matrix, this way it is possible to visually distinguish each of the buttons and assign a color depending on their characteristics.

It is possible to configure each button as "Flash" or as "Toggle", with Flash creating a momentary button, and Toggle creating a latching button.

When sliding the finger horizontally ( left to right ) on a row of executors all the Executors of that row are launched, deactivating the rest. Sliding your finger from right to left deactivates all the Cuelists in that row.

Adding a Cuelist

Cuelists can be copied to the Executors window as follows:

1. In the Executors window click on the "Edit" button.


2. On the left side select the Cuelist you want to add and press the "COPY" button and then select an empty box.


3. Click the "Set" button and then select the box you just created to rename it.


Removing a Cuelist from the executor window

Cuelists can be removed from the Executors window as follows:

1. In the Executors window press the "Edit" button.


2. Press the "DEL" button and then select the box you want to empty.


Locking the executors Window

LightShark allows the blocking through password, of the window of executors, this way the user can block a show so that when connecting a new user can only have access to the executors. This function can be very interesting in those fixed installations or places where there is not a technician constantly.

To activate this function the steps are as follows:

1. Open the LightShark main menu.


2. In the SHOW SETTINGS window, activate the option "LOCK EXECUTORS WINDOW".


3.  Enter a login password.


4. Reload the web page. Each time a device connects it will be redirected to the executors window.


5. To exit the lock mode, click on the padlock icon at the top left. Then enter the password you have previously set.
