LS 1

The LS- 1 consoles offer the user a control system with 4 encoders, 10 master playbackscand an integrated color display combined with a set of RGB buttons to create spectacular shows.

Thanks to its small size, it can be transported as carry-on luggage. In the back, there is a support to accommodate devices such as tablets. In addition, it includes a USB charging port located on the rear panel, which allows you to charge your movile devices .

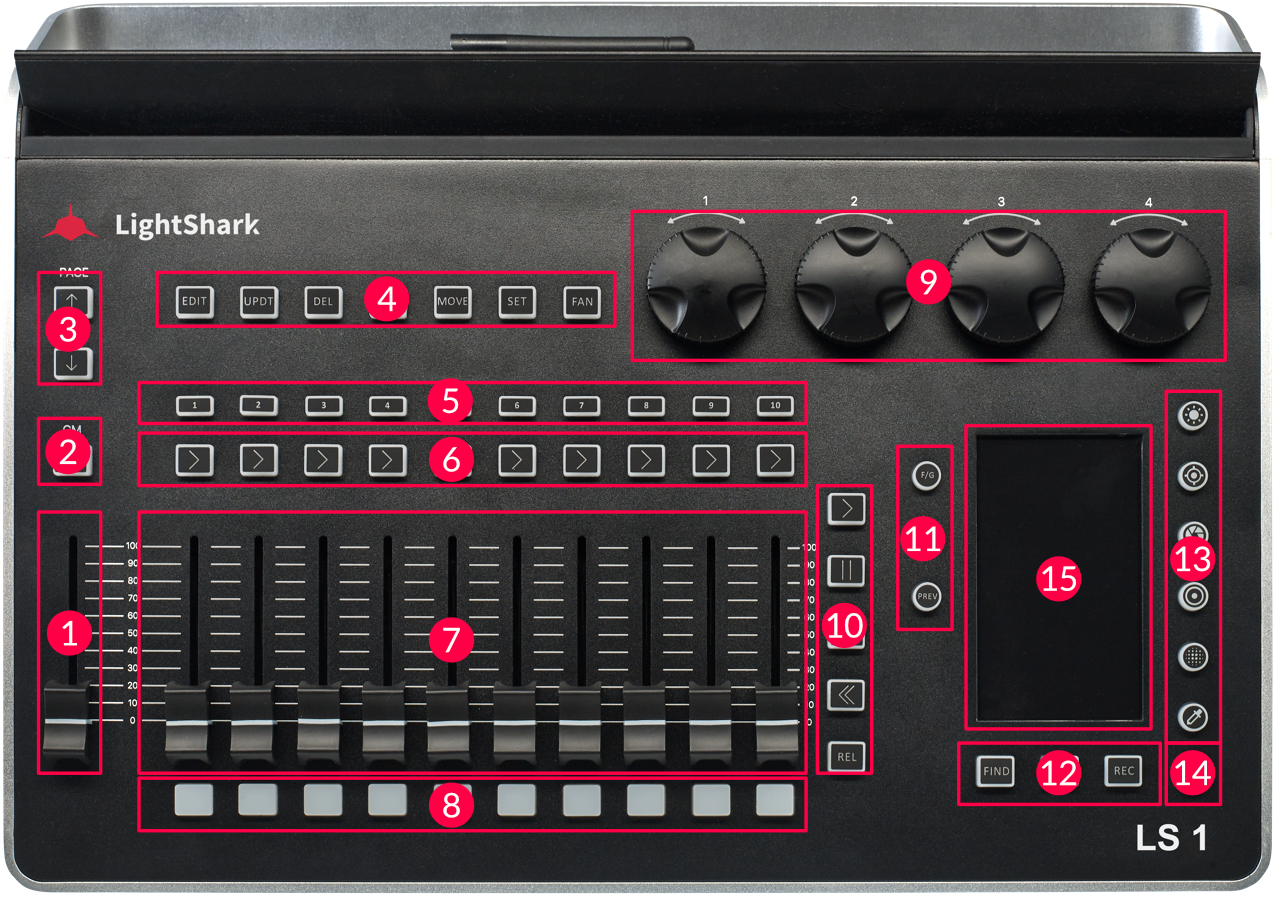

Front Panel

1. GrandMaster

2. Blackout

3. Page selection

4. Editing keys

5. Playback selection keys

6. Playback GO keys

7. Playback area

8. Flash buttons

9. Parameter encoders

10. Playback control buttons

11. Selection buttons

12. Function buttons

13. Parameter type buttons

14. FX generator access button

15. Information display

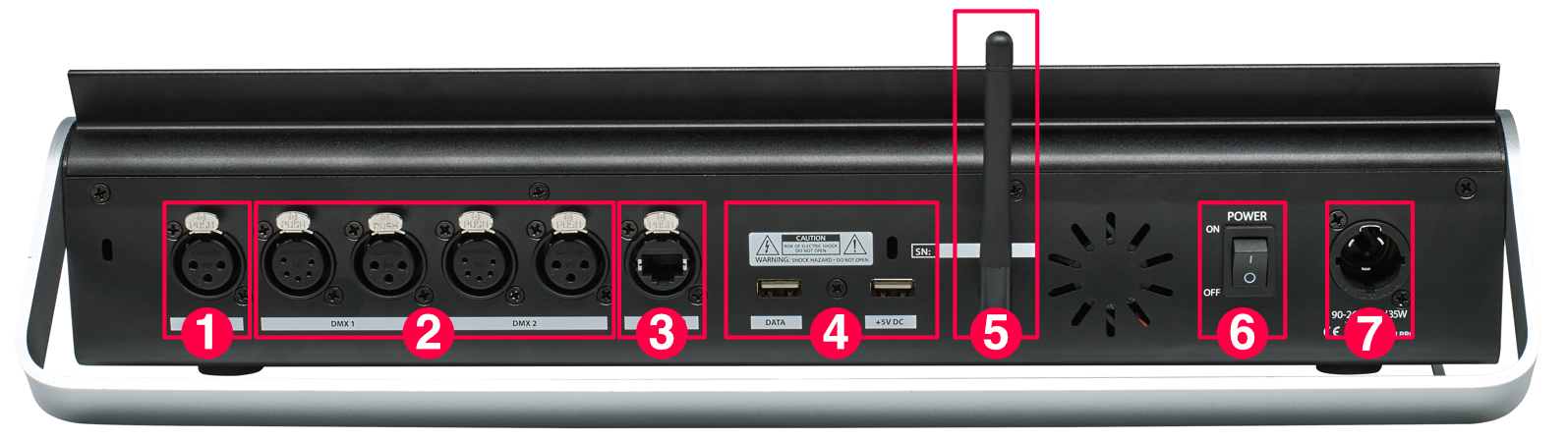

Rear Panel

1. Connection port for 5V lamp

2. DMX Output ( 2 universes )

3. Ethernet Port (EtherCON)

4. USB ports, one for charging and one for data.

5. WiFi antenna

6. Power switch

7. Main power connection ( True1 )

Dimensions (WxHxD)

430x100x330mm

Weight

3.7 Kg
