FX Phase / Spread

Phase/Spread, allows you to adjust how the effect is distributed over several fixtures.

It is possible to adjust this parameter in two different ways, to change the units press and hold the value field for 1 second:

In the unit settings window it is possible to change the units between Phase and Spread

Phase (PH) The value can be set from 1 to 360º. For example, 180º is repeated every 2 fixtures, 90º every 4 fixtures, and so on.

Spread (SP) The value can be set from 1 to 1024. For example, 512 is repeated every 2 fixtures, 256 every 4 fixtures, and so on.

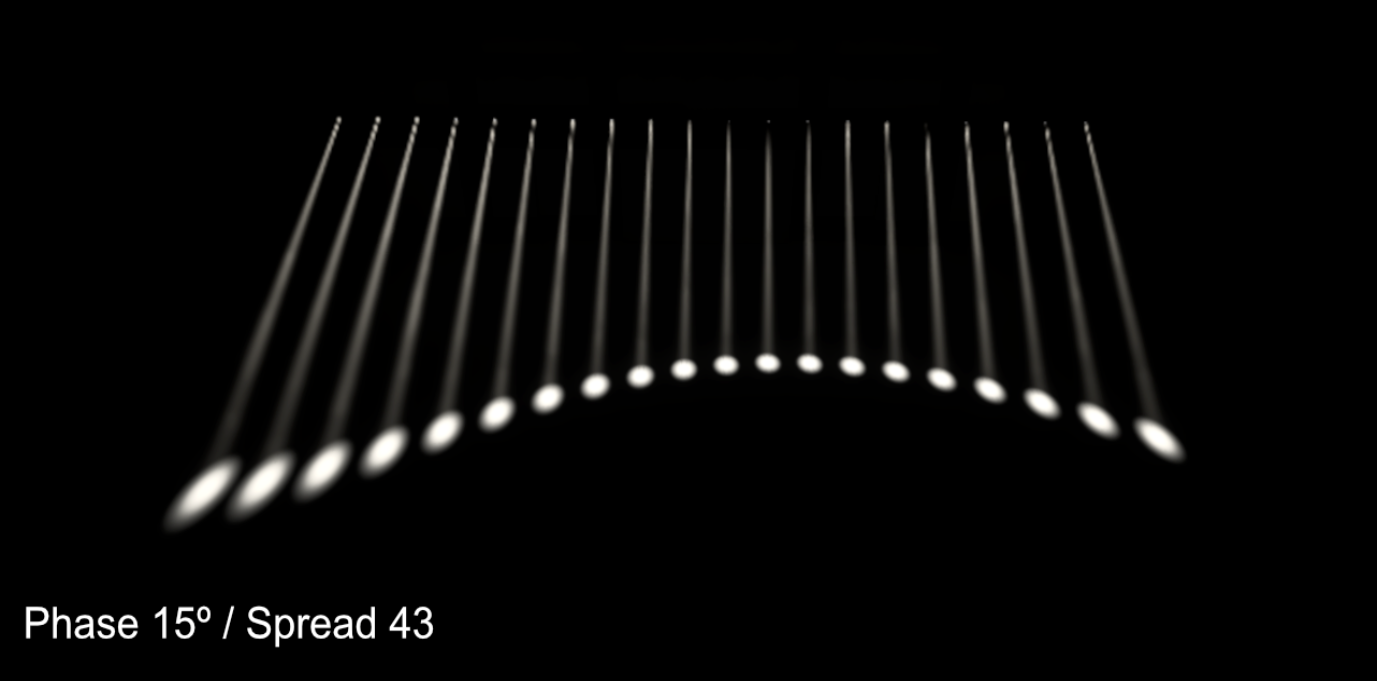

Let's see some examples where it is possible to visualize the effect with different Phase/Spread values.
