Fixture Parameters

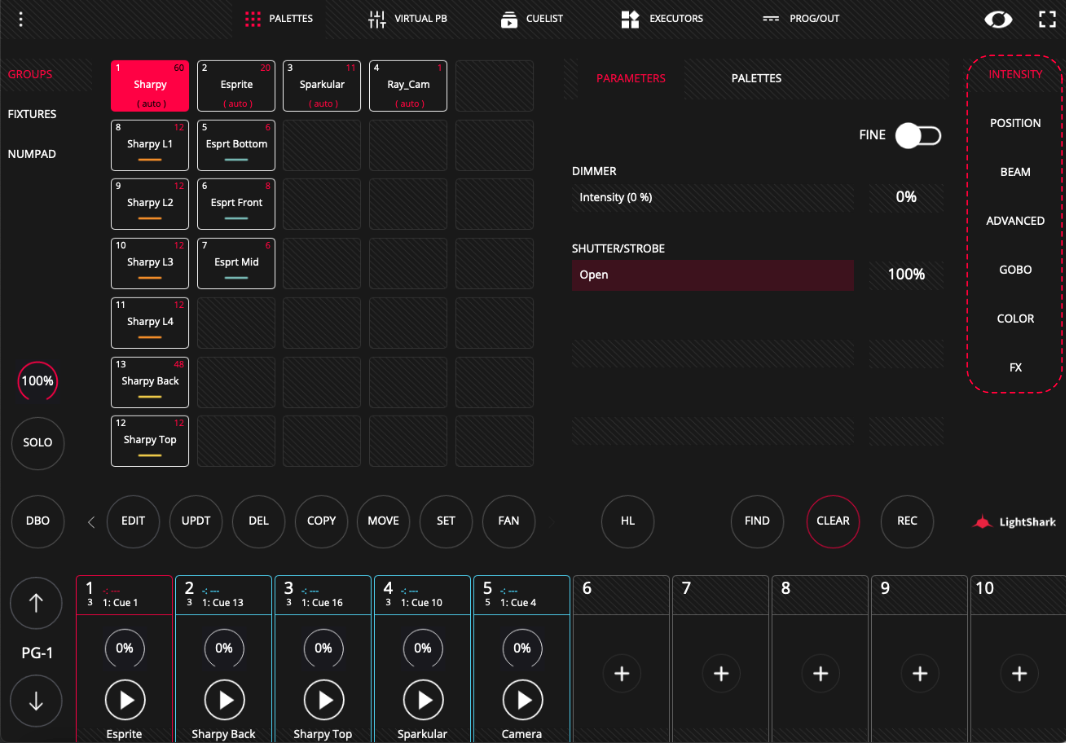

Intelligent lighting fixtures have different types of attributes, among which are Pan, Tilt, Spot, Color, etc. LightShark groups all these parameter types into 6 groups, you can find the access to these parameter types on the right side of the palletes window::
By default each section has a parameter view and a palletes view:
In the parameter view the user will find all parameters of the selected type. By default the parameters are always shown in blocks of 4, if the selected device has for example 7 channels of type "BEAM" it is possible to access the next 4 by scrolling vertically with your finger. Or by clicking again on the parameter button on the LS-1.
Users with an LS-1 can interact with the interface using the encoders and buttons, so that each LS-1 encoder controls each of the currently visible interface parameters (the upper parameter is controlled by the first encoder starting from the left, and so on).
Depending on the value type it is represented in a different color:
The values included in the programmer are represented in light red, the rest of the values
that are not added in the programmer are represented in dark red. The blue color indicates that the selected fixtures have different values of that parameter.
The information shown in this area is also shown on the LCD screen that integrates the LS-1. It is possible to switch between parameters using the console's physical parameter buttons, as well as scrolling over the interface.
Each type of parameter has its corresponding palettes, in some of the boxes the palettes defined by the fixture profile will be shown, in the rest of the boxes the user can record his own palettes.
LightShark displays up to 25 palettes simultaneously, it is possible to perform vertical scrolling as in the parameter window to access more pallets.
In the case of the Position and Color parameters it is possible to see a third view in addition to "PARAMETERS" and "PALETTES".
Each of the types of parameters supported by LightShark are listed below :
