Editing a Fixture

It is possible to edit a fixture within the library to create a new one, this is very useful especially when the fixture we have looks a lot like another fixture from a different manufacturer.

1. In the upper left corner click on the menu icon.




2. Press the "Patch" button.

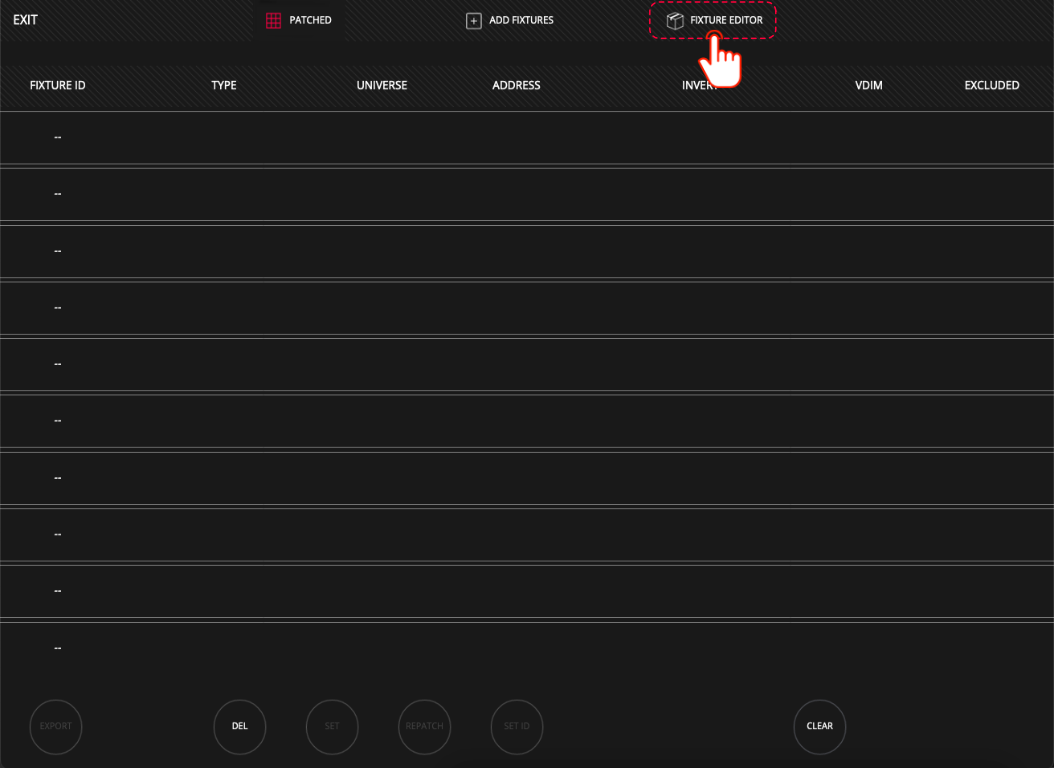

3. Select the top tab “FIXTURE EDITOR".

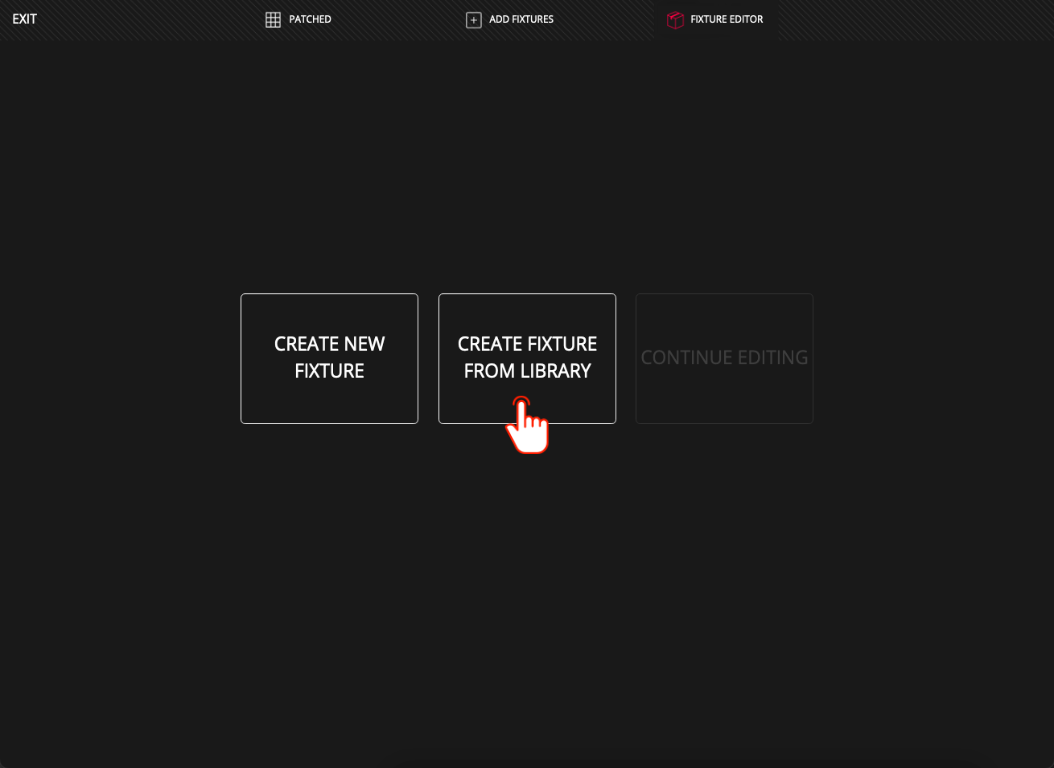

4. Select the "CREATE FIXTURE FROM LIBRARY" option to create a fixture using one of the library as a reference .

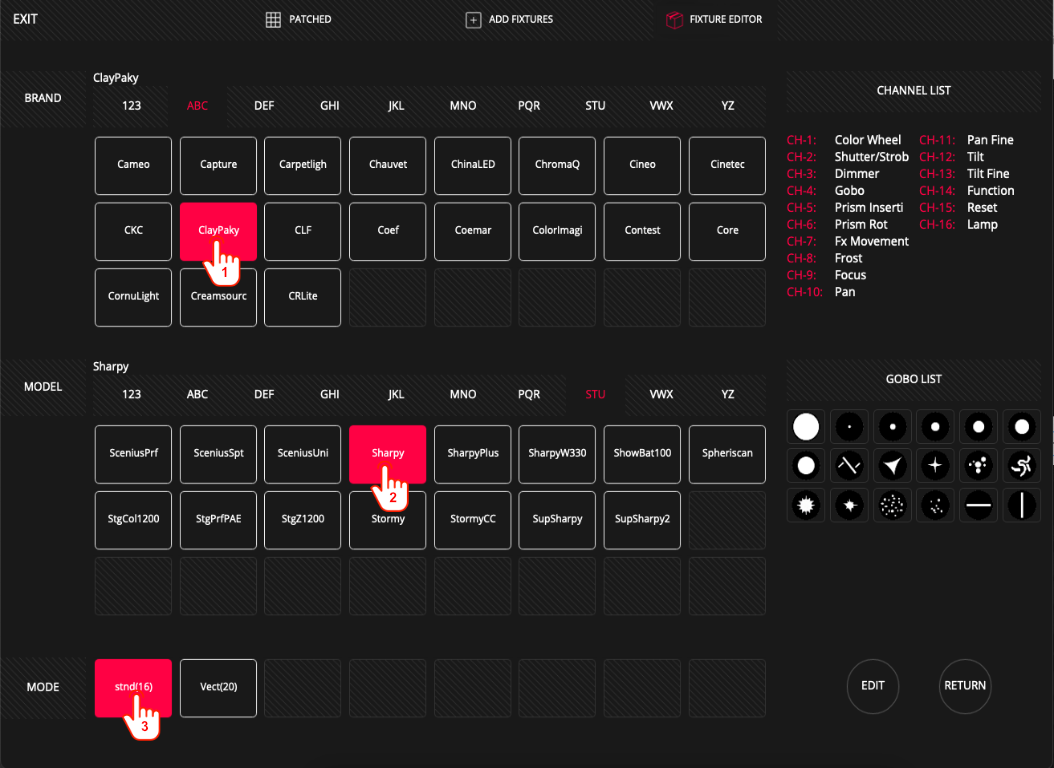

5. select the fixture you want to use as reference for creating the new fixture. .




6. On the right side you can find the basic information of the fixture indicating the number of channels and their function. This allows you to check and see if the fixture meets your needs.

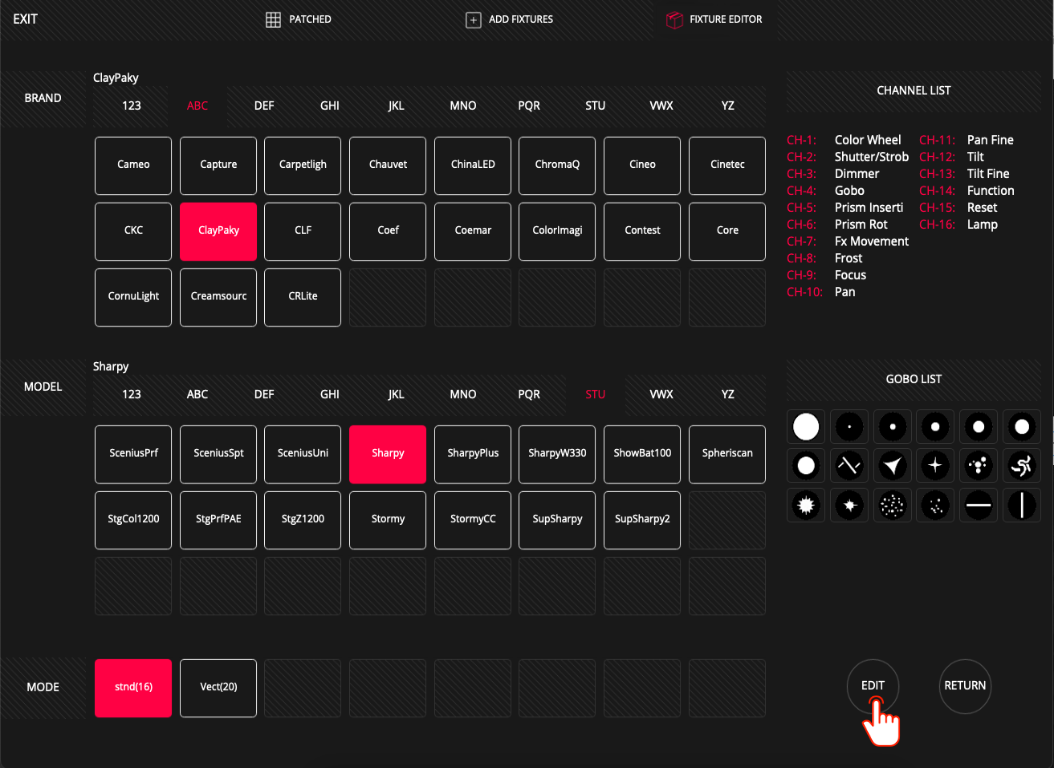

   By pressing "EDIT" lightShark will load this fixture into the library editor, where you can make the relevant changes.

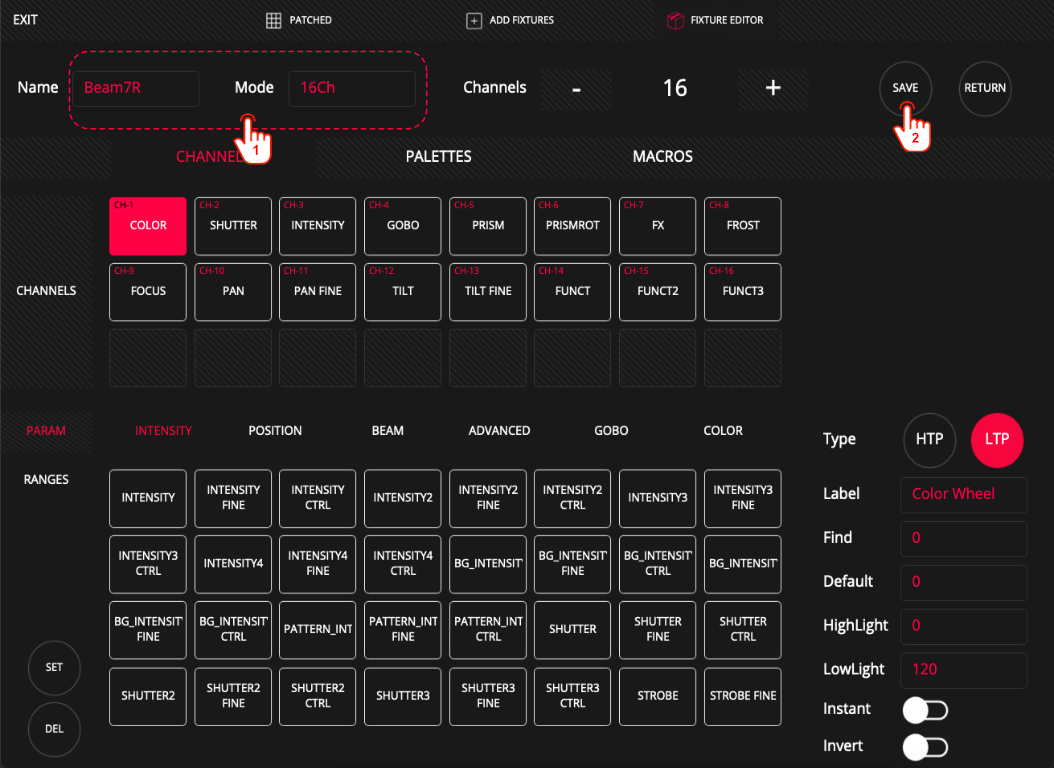

7. Once you have finished editing the fixture, assign a new name and press "SAVE" to add the new fixture to the "USER" folder.
